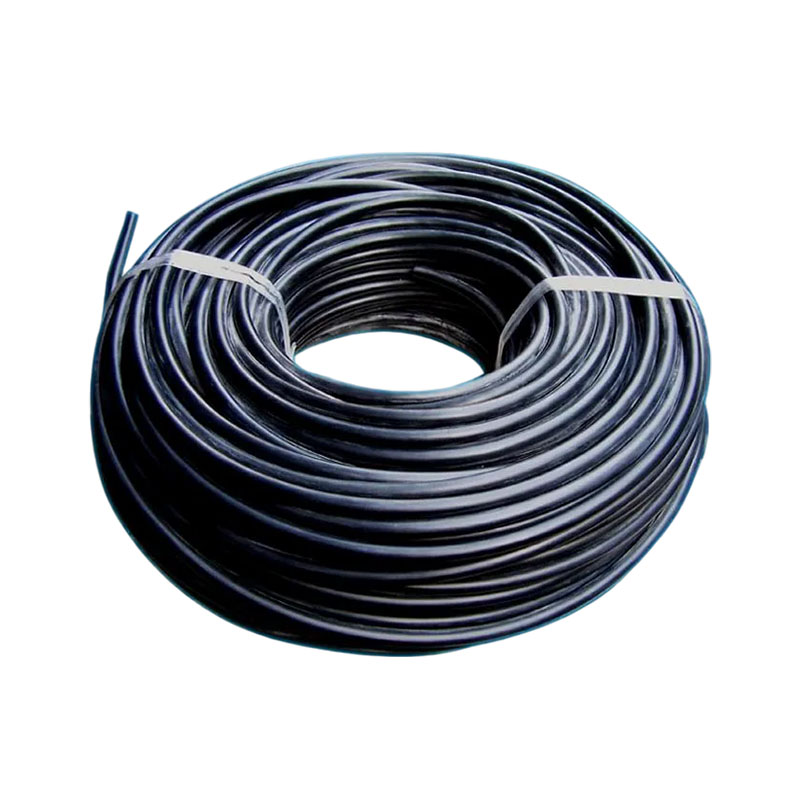

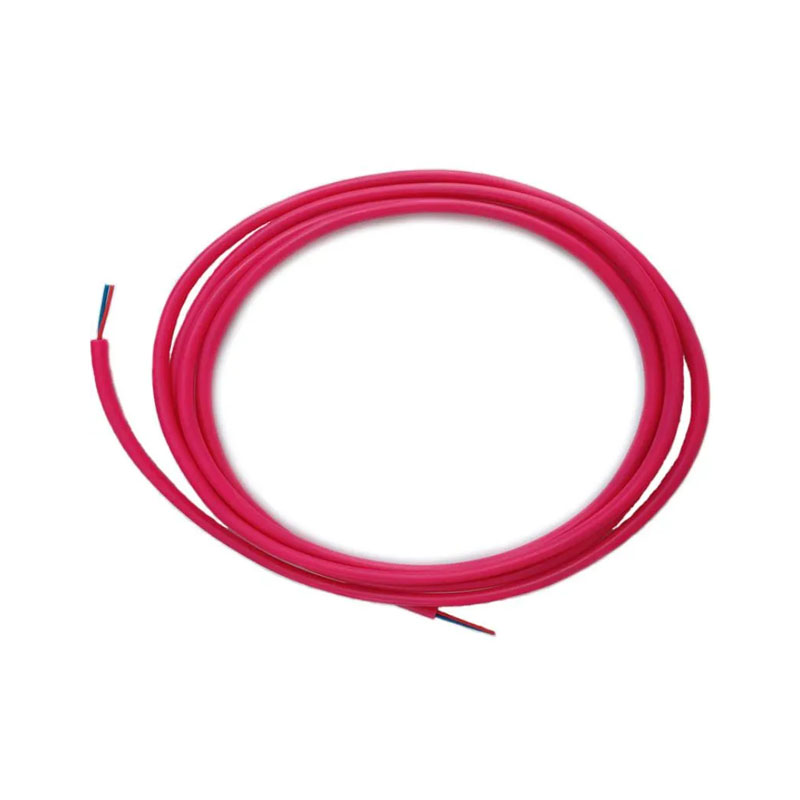

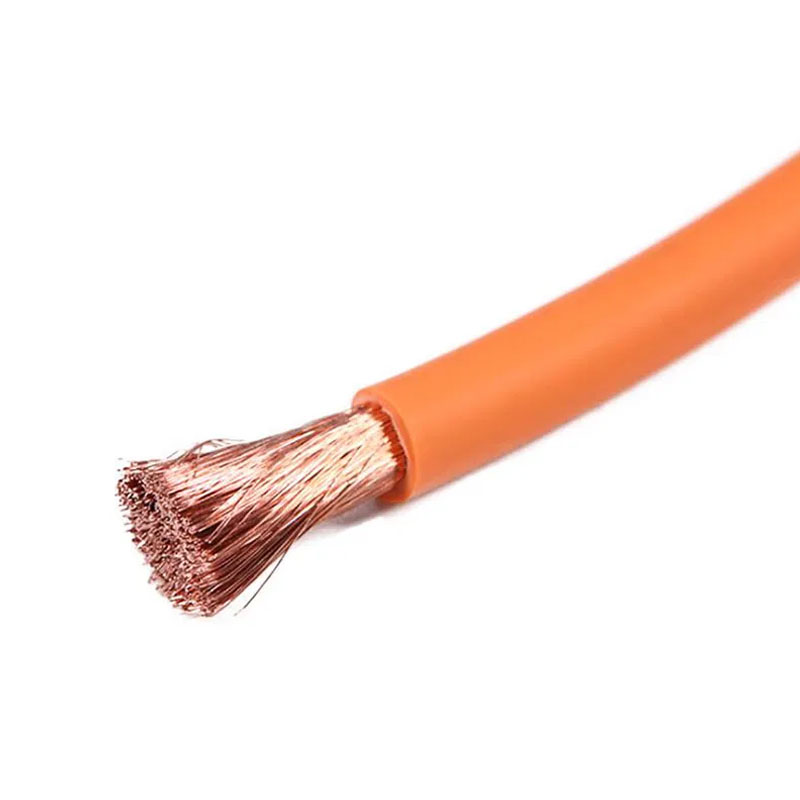

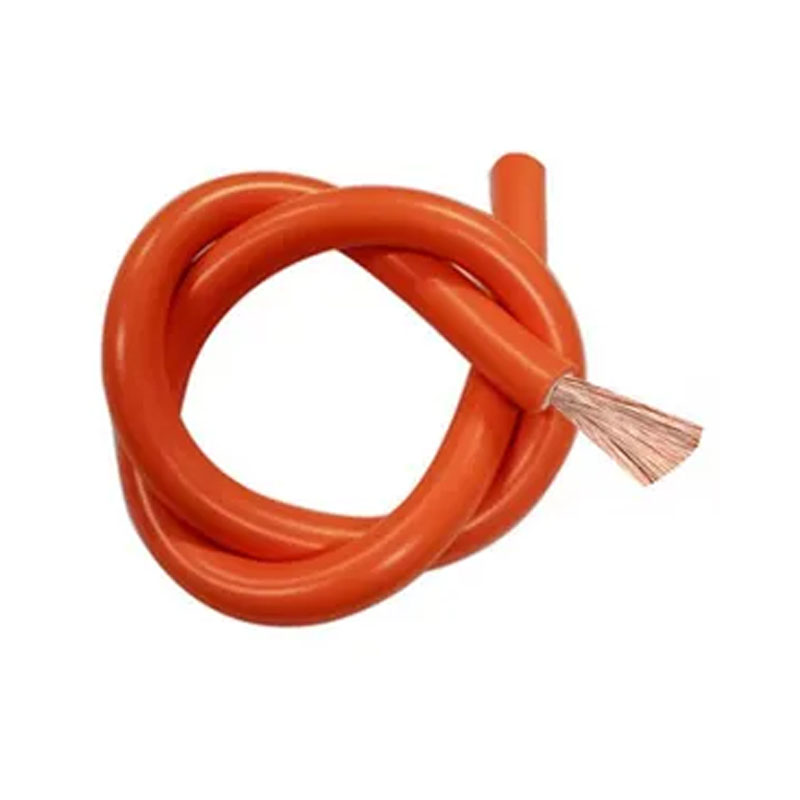

UL 3132 and RoHS Compliance 150c 300V Electric Wire Harness and Cable

UL 3132 and RoHS Compliance 150c 300V Electric Wire Harness and Cable

UL 3132 16AWG~30AWG
Guangdong Huazheng Electronic Technology Co.. Ltd. is a professional and reputable manufacturer and supplier of optical fiber cable wires, power cables, electric wire cables, Electrical cable, Electric wires, Wire harness, electric vehicle charger cables, medical equipment cables and wire harness, automatic machine wire harness, cable parts, electronic terminals and connectors etc.

Consult

Features Technical Indicators Overall Dimension

High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance UL 758&UL1581 RoHS complicance.

Apply to Household appliance,Lighting lamps and lanterns,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars & Ships Electrical installation.

Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.

Conductor			Insulation		Electrical Characteristic		Packing
AWG	Conductor construction NO×♀mm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Realst.max Cuc.c 20ºC ohm/km	Permissiblle ampacity 20ºC-AMR	mt/coils
30	7x0.103	0.31	0.38	1.07	376.96	1.27	610
28	7x0.127	0.43	0.38	1.19	237.25	2.02	610
26	7x0.16	0.49	0.38	1.25	148.94	3.22	610
24	7x0.203	0.61	0.38	1.37	93.25	5.15	610
22	7x0.254	0.76	0.38	1.52	55	8.73	610
20	7x0.32	0.94	0.38	1.7	34.6	13.87	610
18	7x0.39	1.19	0.38	1.95	21.8	22.02	305
16	7x0.50	1.5	0.38	2.26	13.7	35.04	305
PRODUCTS CAPABILITY OVERVIEW
Overall Capability	Power cable lug termination Ultrasound welding Over-molding assembly IDC cable assembly Water-proof cable assembly Coaxial cable assembly Other electricity components assembly
Wire Type and cross section	Big cross section from 12AWG to 200mm2 Fine cable as small as 40AWG Silicone rubber cable XLPE cable Teflon cable PVC cable TPE/TPU cable Multi-core Silicone rubber, PVC, TPE, TPU cable Coaxial cable (double insulation, triple insulation) Other specialty cable
Connector Type	M Circular connector Coaxial connector Power lug D-sub connector Hybrid connector Other conventional TE, Molex, JST connector
Manufacturing Process	3D printing, tooling & fixture design, cut, strip, termination, over-molding, potting, assembly, final testing (electrical and signal)
