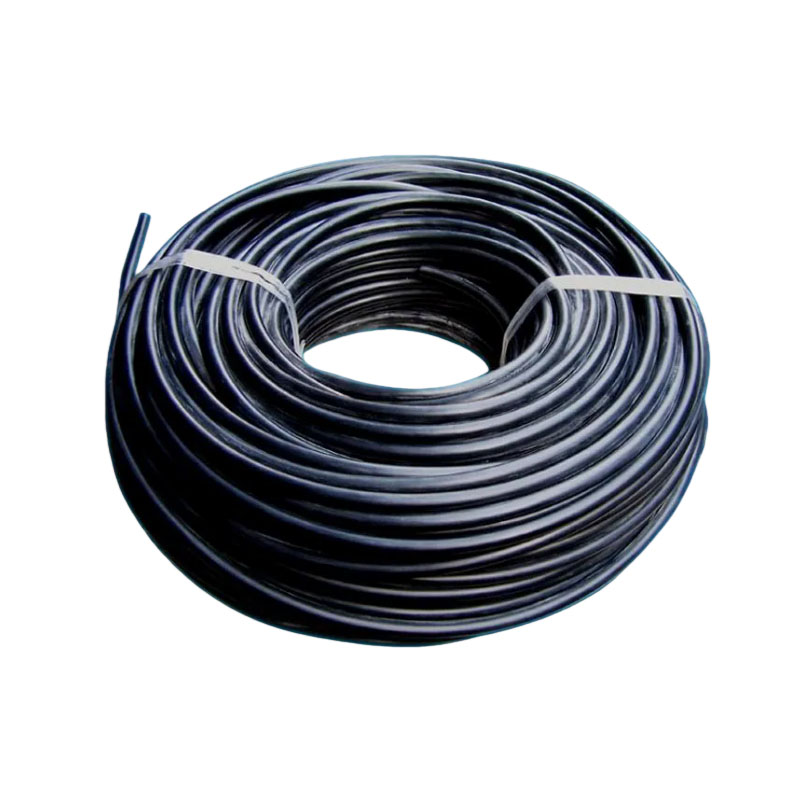

UL 3239 And Rohs Compliant 200c High-Voltage Flexible Power Wire Cable
UL 3239 24AWG~10AWG 3KV~30KV
UL 3239 Standard RoHS Compliance 200C 3KV 6KV 10KV 20KV 30KV Flexible High-voltage Flame retardant Silicone wire cable
Guangdong Huazheng Electronic Technology Co.. Ltd. mainly researches and develops and produces industrial cables made of Teflon, silicon image adhesive, XLPE, TPE, TPU and PVC, new energy automobile cables, energy storage cables, medical cables, industrial sensing cables and high-temperature special cables customized by customers, which are widely used in automobile, energy storage, industrial control equipment, automation equipment, elec-tronic and electrical products, medical equipment, lighting lamps and video communication systems.
Huazheng Electronic is a technology and design-driven interconnect engineering company founded by an experienced engineering team with uncompromised passion on wire and connector industry, with the mission to be one of most innovative customized interconnect enterprises in the world, Huazheng Electronic is engaged in designing, engineering, manufacturing and distributing a wide range of cables, connectors, integrated cable assembly solutions to customers across a wide variety of quality-critical industries from sensor, meter and measurement, medical device, power device, high frequency transformer and inductor, communication device, IoT device to industrial facility, Huazheng Electronic has complete and extensive scalable design solutions and product offerings to customers regardless of size throughout concept design, prototypes, performance validation and mass production.
Our rich expertise and insight into interconnect products and consistent pursue for innovation on cable, connector and assembly earned us a good reputation in the industry and trusted by many technology customers, some start-ups recognize Huazheng Electronic as a strategic business partner since the design stage whose device electricity system relies on Huazheng Electronic best interconnec
High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance UL 758&UL1581 RoHS complicance.
Apply to Household appliance,Lighting lamps and lanterns,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars & Ships Electrical installation.
Conductor | Insulation | Electrical Characteristic | Packing |
3000V | 6000V | 10000V | 20000V | 30000V |
AWG | Conductor construction
NO×mm | Diameter mm | Insulation Thickness mm | Over Diameter mm | Insulation Thicknessmm | Over Diameter mm | Insulation Thicknessmm | Over Diameter mm | Insulation Thicknessmm | Over Diameter mm | Insulation Thicknessmm | Over Diameter mm | Realst.max
Cuc.c 20ºC ohm/km | mt/coils |
28 | 7x0.12 | 0.37 | 0.5 | 1.37 | 0.7 | 1.77 | 1 | 2.37 | 1.3 | 2.97 | 1.7 | 3.77 | 237.25 | 305 |
26 | 7x0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 1.7 | 3.89 | 148.94 | 305 |
24 | 14x0.14 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 1.7 | 4 | 93.25 | 305 |
22 | 22x0.14 | 0.76 | 0.5 | 1.76 | 0.7 | 2.16 | 1 | 2.76 | 1.3 | 3.36 | 1.7 | 4.16 | 55 | 305 |
20 | 32x0.14 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 1.7 | 4.31 | 34.6 | 305 |
18 | 52x0.14 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 1.7 | 4.57 | 21.8 | 305 |
16 | 52x0.18 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 1.7 | 4.9 | 13.7 | 200 |
14 | 37x0.26 | 1.83 | 0.6 | 3.03 | 0.8 | 3.43 | 1.2 | 4.23 | 1.5 | 4.83 | 2 | 5.83 | 8.62 | 100 |
