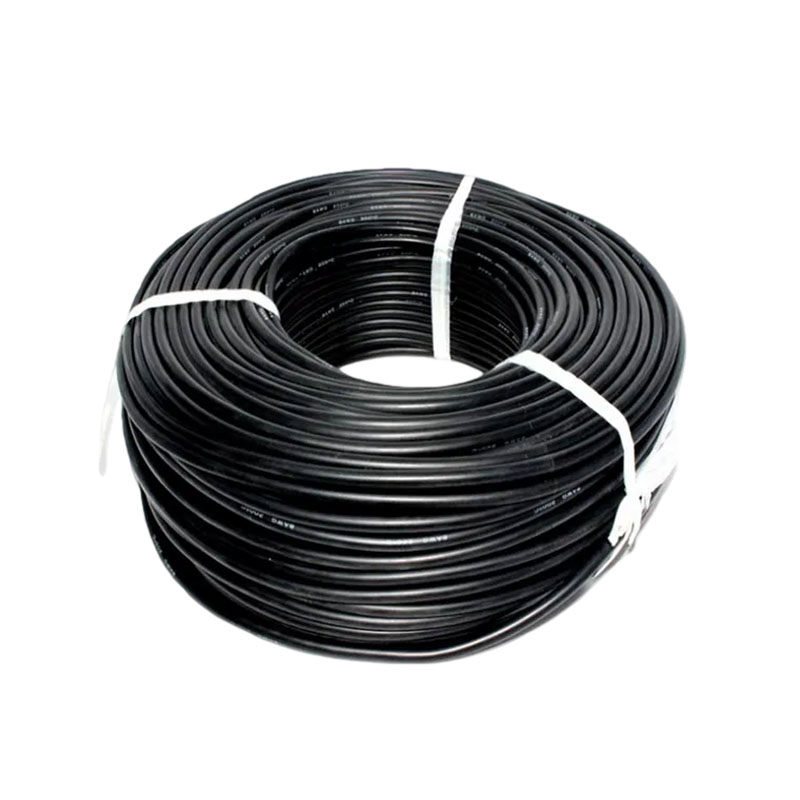

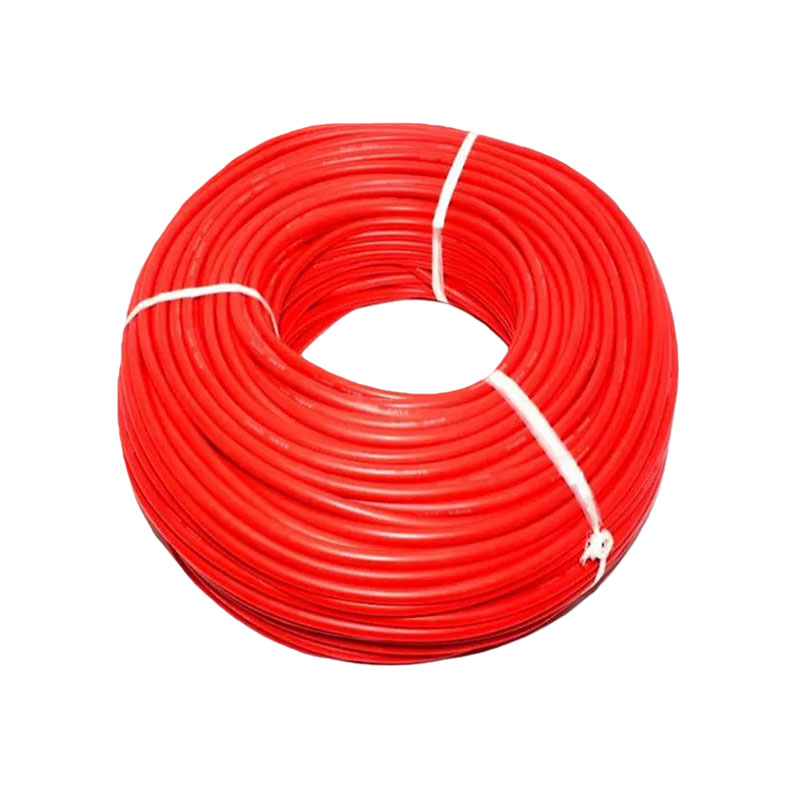

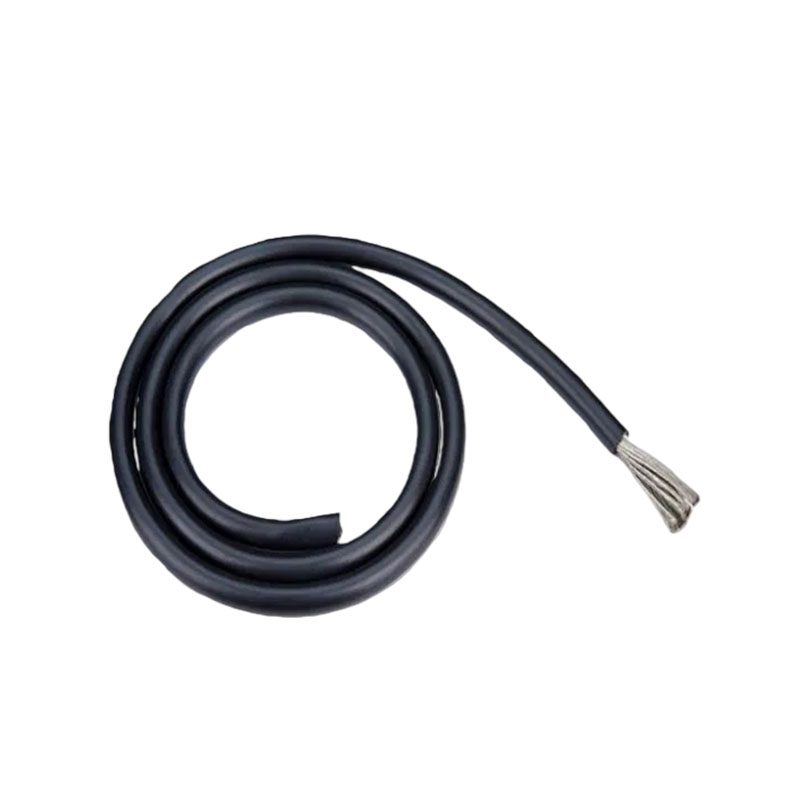

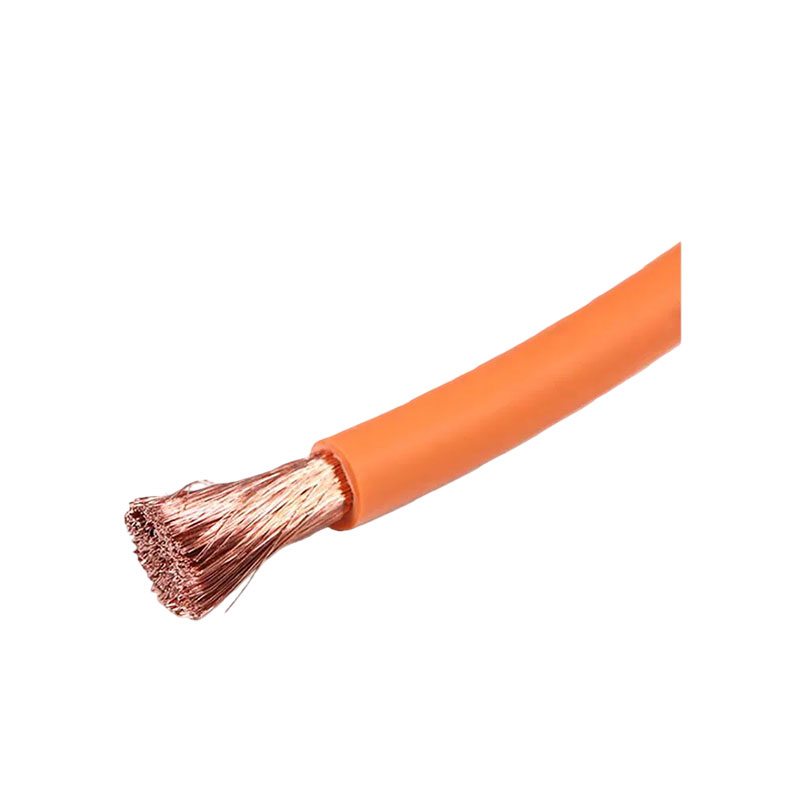

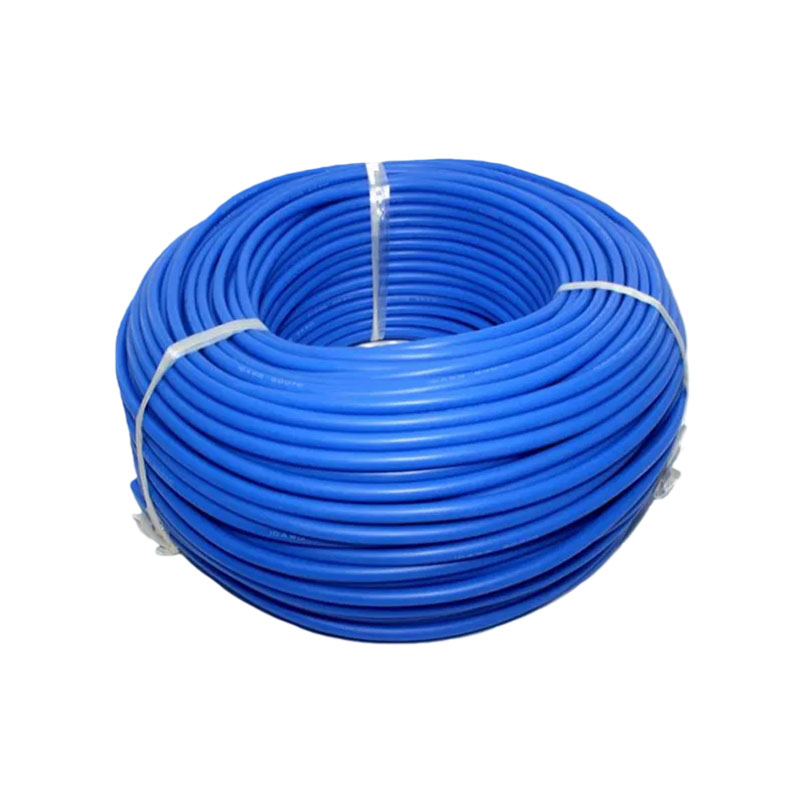

UL 3122 and RoHS Compliant 200c 300V Flexible Optical Firber Wire Cable

UL 3122 and RoHS Compliant 200c 300V Flexible Optical Firber Wire Cable

UL 3122 26AWG~16AWG
Guangdong Huazheng Electronic Technology Co.. Ltd. is a professional and reputable manufacturer and supplier of optical fiber cable wires, power cables, electric wire cables, Electrical cable, Electric wires, Wire harness, electric vehicle charger cables, medical equipment cables and wire harness, automatic machine wire harness, cable parts, electronic terminals and connectors etc.

Consult

Features Technical Indicators Overall Dimension

High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance UL 758&UL1581 RoHS complicance.

Apply to Household appliance,Lighting lamps and lanterns,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars & Ships Electrical installation.

Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.

Conductor			Insulation		Electrical Characteristic		packing
AWG	Conductor construction NO×♀mm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Realst.max Cuc.c 20ºC ohm/km	Permissiblle ampacity 20ºC-AMR	mt/coils
26	7x0.16	0.46	0.6	1.66	148.94	3.22	610
24	7x0.203	0.61	0.6	1.81	93.25	5.15	305
22	7x0.254	0.76	0.6	1.96	55	8.73	305
20	7x0.32	0.95	0.6	2.15	34.6	13.87	305
18	7x0.39	1.19	0.6	2.39	21.8	22.02	305
16	7x0.50	1.53	0.65	2.83	13.7	35.04	305
