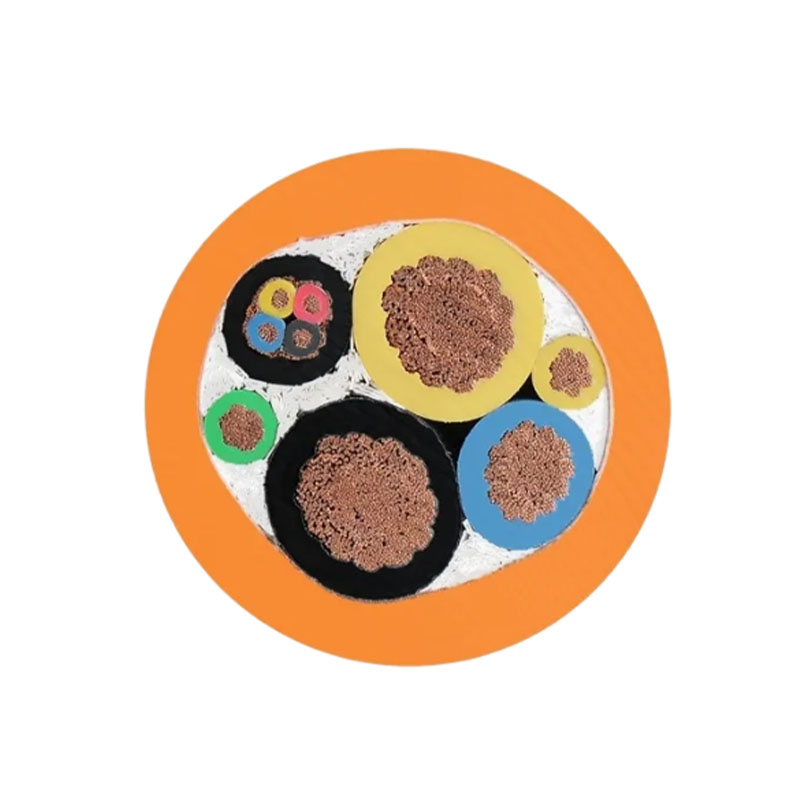

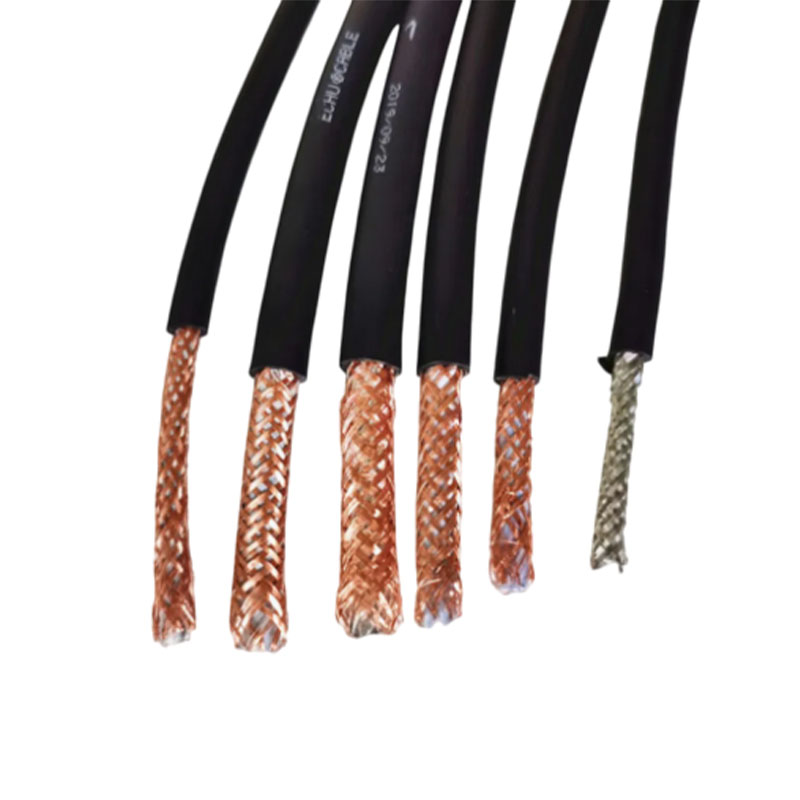

VDE 1185 and RoHS Compliant 180c 300/500V Spiral Shiled Electric Wire Cable

VDE 1185 and RoHS Compliant 180c 300/500V Spiral Shiled Electric Wire Cable

VDE 1185 0.25mm2~1.0mm2
Guangdong Huazheng Electronic Technology Co.. Ltd. is a professional and reputable manufacturer and supplier of optical fiber cable wires, power cables, electric wire cables, Electrical cable, Electric wires, Wire harness, electric vehicle charger cables, medical equipment cables and wire harness, automatic machine wire harness, cable parts, electronic terminals and connectors etc

Consult

Features Technical Indicators Overall Dimension

High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance VDE, RoHS complicance.

Apply to Household appliance,Lighting lamps and lanterns,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars & Ships Electrical installation.

Our products can meet UL, VDE, CCC, PSE,CE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.

Conductor			Insulation		(Shield)	Jacket		Electrical Characteristic	packing
Section mm2	Conductor construction NO×Φmm	Diameter mm	Insulation Thickness mm	Over DIM. mm	Spiral Shiled mm	Jacket Thickness mm	Over DIM. mm	Realst.max Cuc.c 20ºC ohm/km	mt/coils
0.25	32×0.1	0.65	0.55	1.75	50/0.1	0.80	3.55	89.3	200
0.40	49×0.1	0.81	0.55	1.91	52/0.1	0.80	3.71	56.4	200
0.50	16×0.20	0.92	0.55	2.02	56/0.1	0.80	3.82	39.0	200
0.75	24×0.20	1.13	0.55	2.23	52/0.12	0.80	4.07	26.0	200
1.00	32×0.20	1.31	0.55	2.41	58/0.12	0.80	4.25	19.5	200
