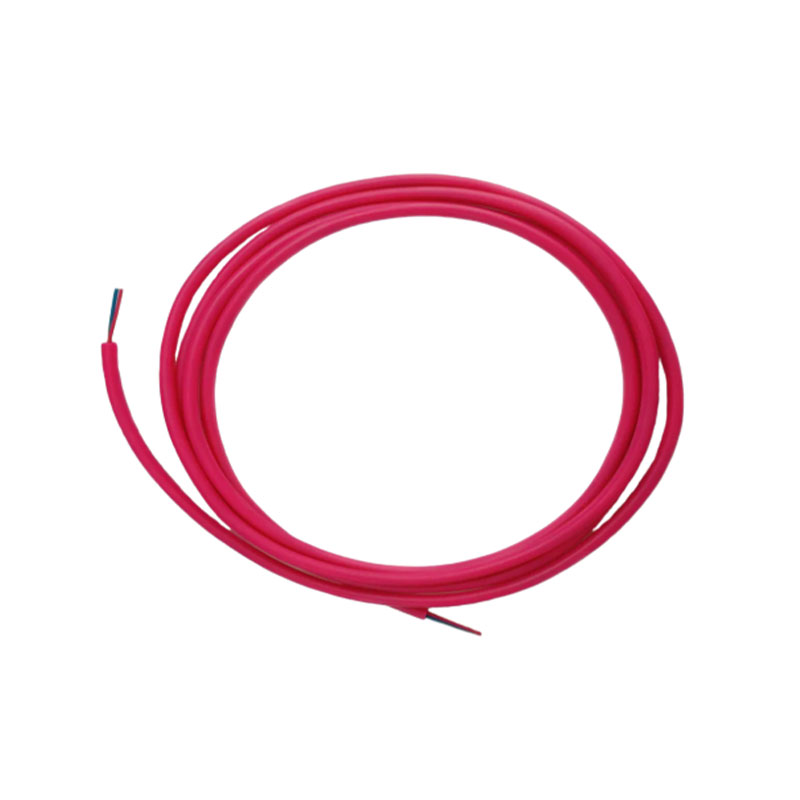

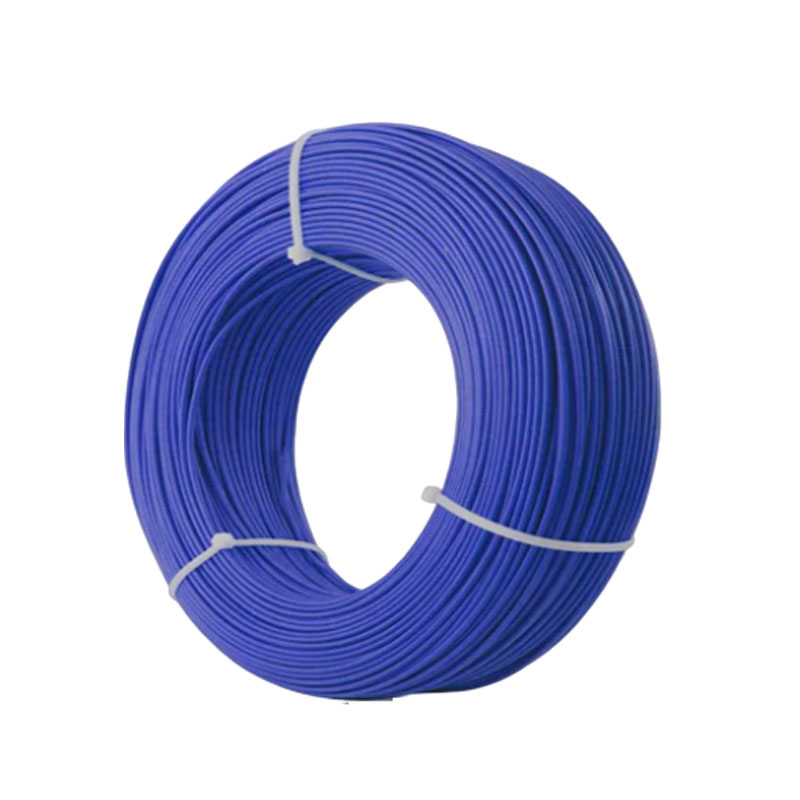

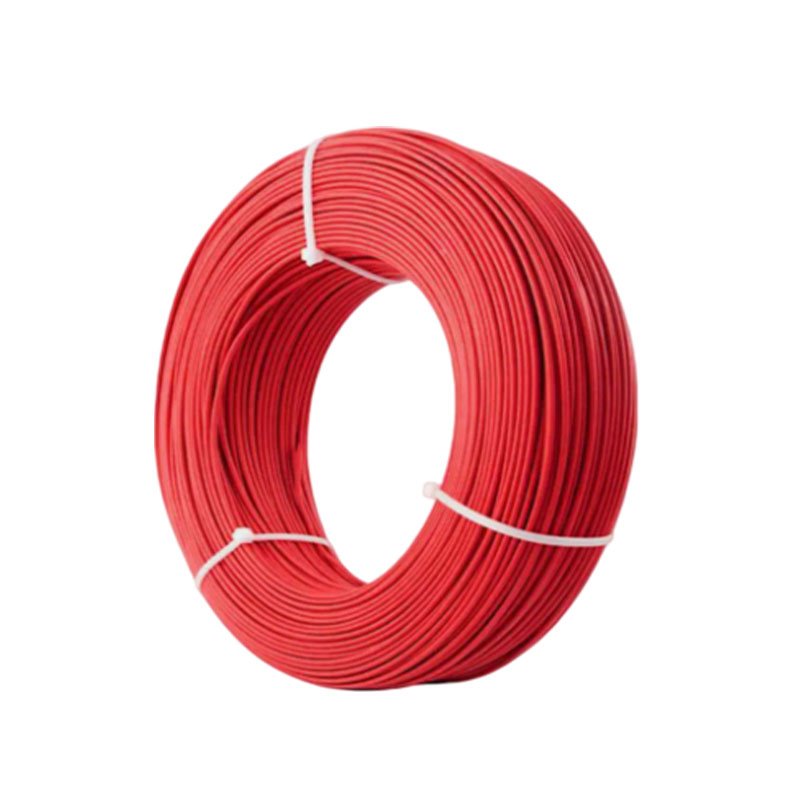

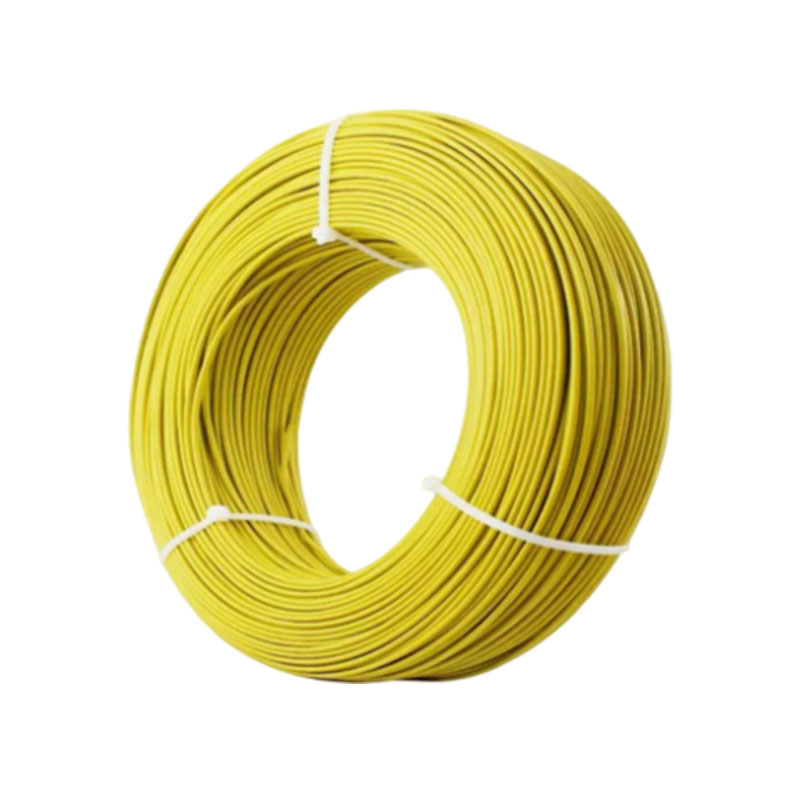

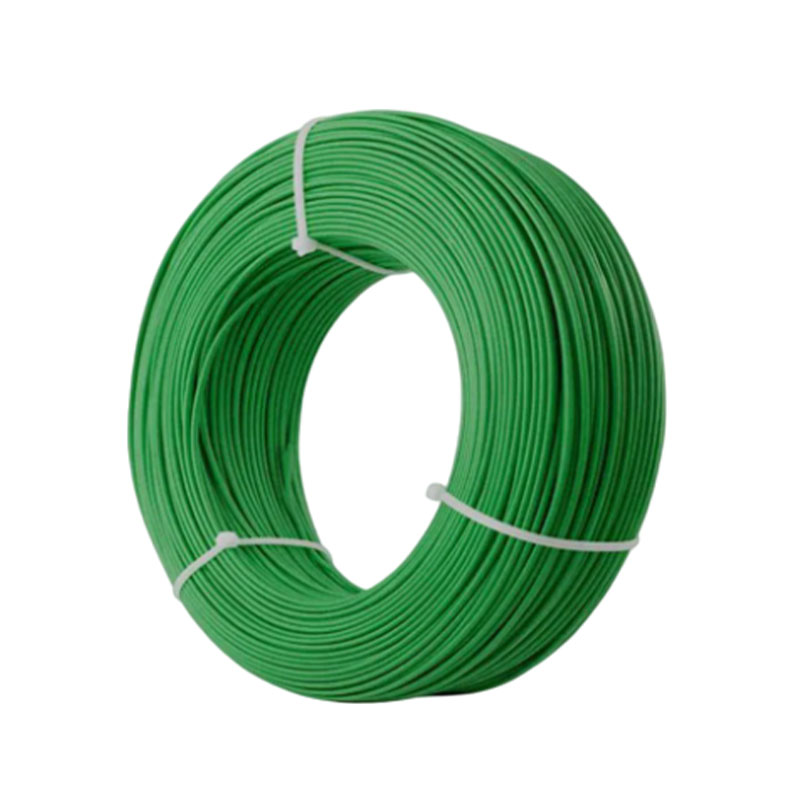

UL Standard Rohs Compliance 150c 200c 600V Fluoroplastic ETFE Wire Cable

UL Standard Rohs Compliance 150c 200c 600V Fluoroplastic ETFE Wire Cable

Household Appliances, Lighting Fixtures
High temperature resistance,low temperature resistance anti-acid,anti-oil,antisepsis and moisture,DIN VDE 0250,ROHS compliance.
Application:
Apply to household appliance,illumination & lighting & Headlamp,electric machines,temperature sensor,Military series,Metallurgy Chemical series,Motor cars & Ships Electrical Installation.

Consult

Features Technical Indicators Overall Dimension

High temperature resistance,low temperature resistance anti-acid,anti-oil,antisepsis and moisture,DIN VDE 0250,ROHS compliance.

Application:
Apply to household appliance,illumination & lighting & Headlamp,electric machines,temperature sensor,Military series,Metallurgy Chemical series,Motor cars & Ships Electrical Installation.

Conductor			Insulation		Electrical Characteristic		Packing
AWG	Conductor construction NO×mm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Realst.max Cuc.c 20ºC ohm/km	Permissiblle ampacity 20ºC-AMR	Mt/coils
26	7×0.16	0.49	0.3	1.09	143.00	3.15	610
24	7×0.20	0.61	0.3	1.21	89.30	5.04	305
22	19×0.15	0.76	0.3	1.36	56.40	7.98	305
20	19×0.185	0.93	0.3	1.53	35.20	12.78	305
18	19×0.235	1.16	0.3	1.76	22.20	20.27	305
