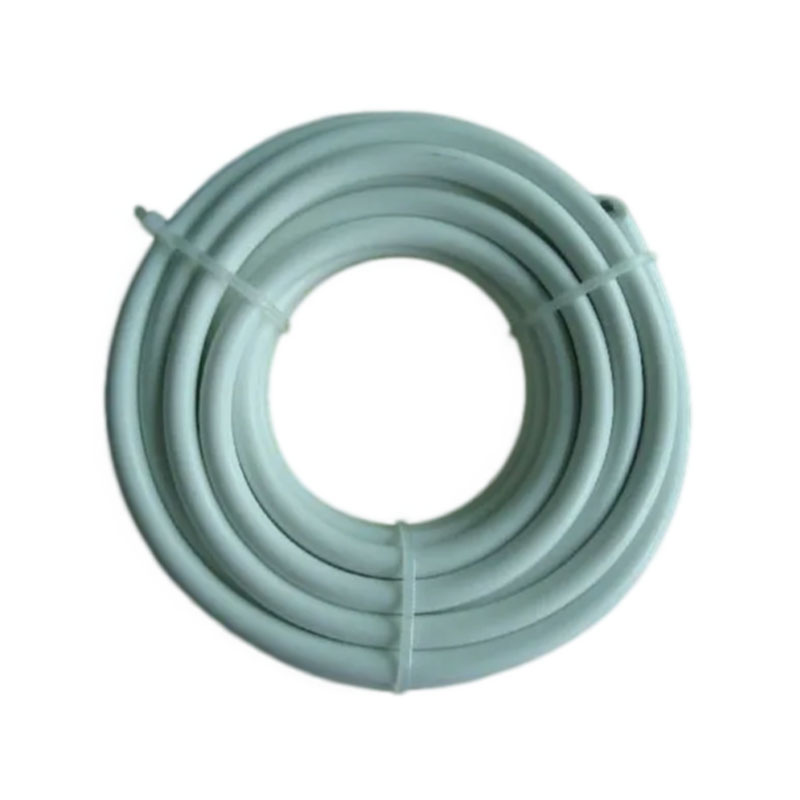

VDE Svt-S and RoHS Compliant 180c High-Voltage Power Wire Cable

VDE Svt-S and RoHS Compliant 180c High-Voltage Power Wire Cable

VDE SVT-S 0.5mm2~2.5mm2
Guangdong Huazheng Electronic Technology Co.. Ltd. is a professional and reputable manufacturer and supplier of optical fiber cable wires, power cables, electric wire cables, Electrical cable, Electric wires, Wire harness, electric vehicle charger cables, medical equipment cables and wire harness, automatic machine wire harness, cable parts, electronic terminals and connectors etc.

Consult

Features Technical Indicators Overall Dimension

High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance VDE, RoHS complicance.

Apply to Household appliance,Lighting lamps and lanterns,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars & Ships Electrical installation.

Our products can meet UL, VDE, CCC, PSE,CE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.

Conductor			Insulation
Conductor			1KV DC		3KV DC		6KV DC		10KV DC		20KV DC
Section mm2	Conductor construction NO×φmm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Insulation Thickness mm	Over Diameter mm	Insulation Thickness mm	Over Diameter mm	Insulation Thickness mm	Over Diameter mm	Insulation Thickness mm	Over Diameter mm
0.50	16×0.2	0.92	1.00	2.92	1.3	3.52	2.6	6.12	3.4	7.72	5.5	11.92
0.75	24×0.2	1.13	1.00	3.13	1.3	3.73	2.6	6.33	3.4	7.93	5.5	12.13
1.00	32×0.2	1.31	1.00	3.30	1.3	3.9	2.6	6.5	3.4	8.1	5.5	12.3
1.50	48×0.20	1.61	1.00	3.58	1.3	4.18	2.6	6.78	3.4	8.38	5.5	12.58
2.50	48×0.25	2.06	1.00	4.06	1.3	4.66	2.6	7.26	3.4	8.86	5.5	13.06
