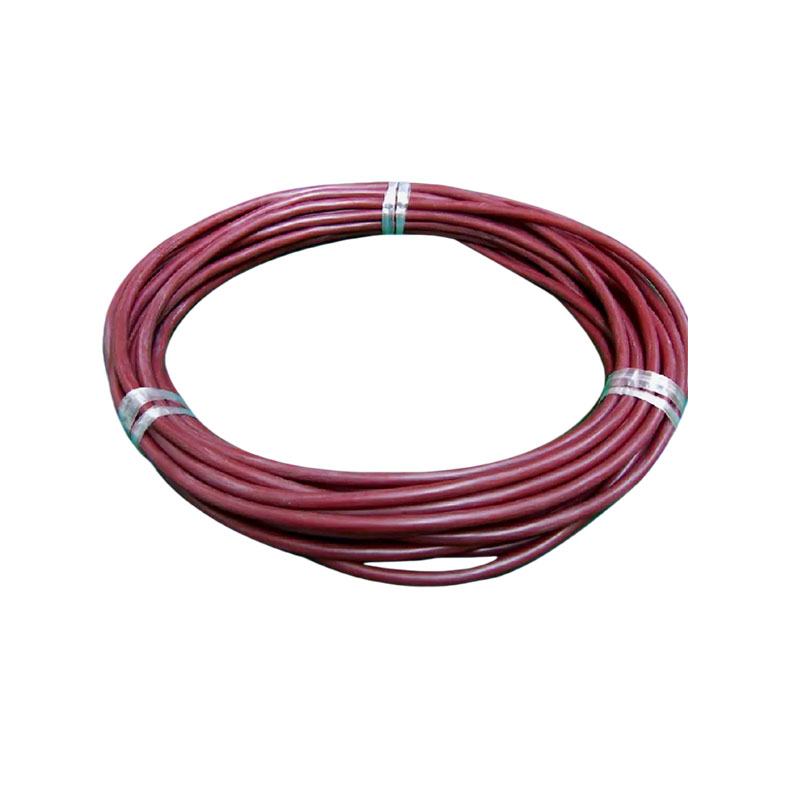

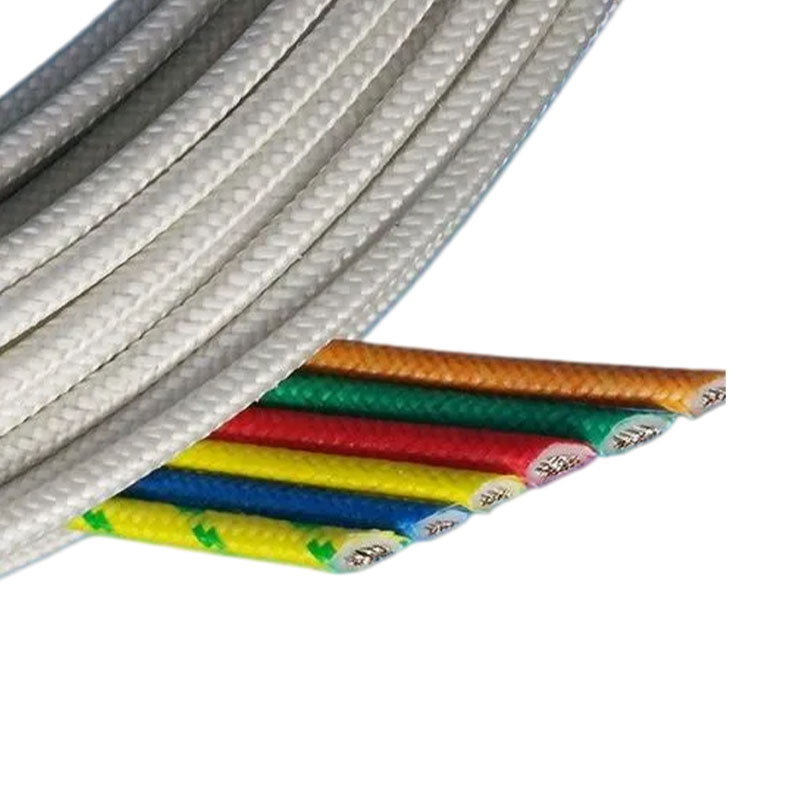

CCC 60245 03 (YG) And Rohs Compliant 180c 300/500V Power Wire Cable

CCC 60245 03 (YG) And Rohs Compliant 180c 300/500V Power Wire Cable

CCC 60245 03 (YG) 0.5mm2~2.5mm2
High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance GB/T 5013, RoHS complicance.
Apply to Household appliance,Lighting lamps and lanterns,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars & Ships Electrical installation.
Our products can meet UL, VDE, CCC, PSE,CE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.

Consult

Features Technical Indicators Overall Dimension

High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance GB/T 5013, RoHS complicance.

Apply to Household appliance,Lighting lamps and lanterns,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars & Ships Electrical installation.

Our products can meet UL, VDE, CCC, PSE,CE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.

Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.

Conductor			Insulation			Electrical Characteristic	Packing
Section mm2	Conductor construction NO×φmm	Diameter mm	Insulation Thickness mm	Fiber Glass Braid Thickness mm	Over Diameter mm	Realst.max Cuc.c 20ºC ohm/km	Mt/coils
0.50	16×0.2	0.92	0.60	0.20	2.52	39	400
0.75	24×0.2	1.13	0.60	0.20	2.73	26	400
1.00	32×0.2	1.31	0.60	0.20	2.91	19.5	400
1.50	48×0.20	1.61	0.70	0.20	3.41	13.3	200
2.50	48×0.25	2.06	0.80	0.20	4.06	7.98	200
