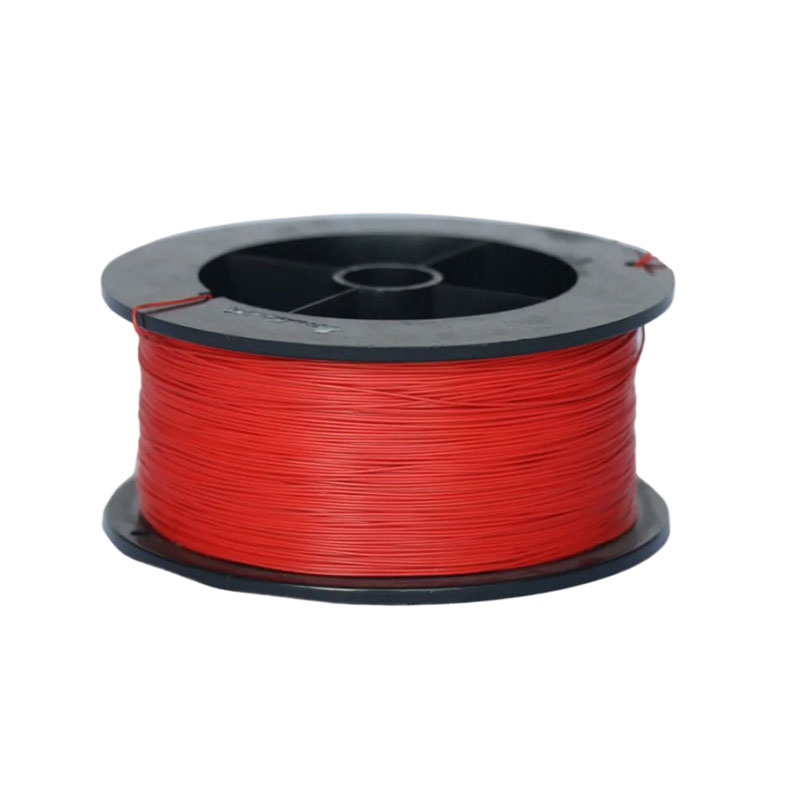

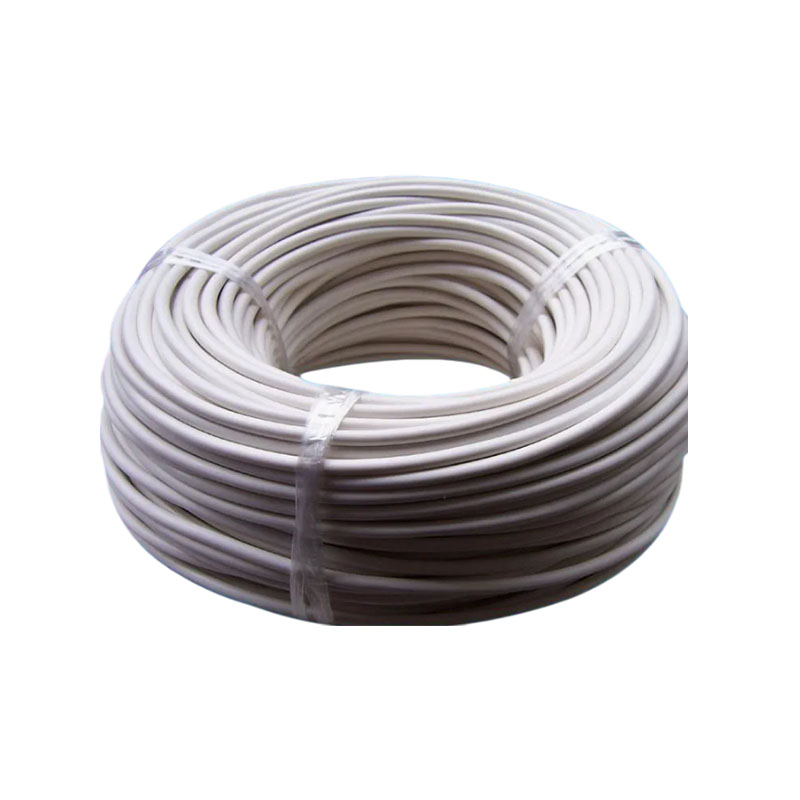

VDE Fg4g4 And Rohs Compliant 180c 300/500V Electric Wire Cable
VDE FG4G4 0.5mm2~2.5mm2
High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance VDE, RoHS complicance.
Application:
Apply to Household appliance,Lighting&Headlamp,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars&Ships Electrical installation.
Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.
High temperature resistance,low temperature resistace anti-acid and alkali ,fire and aging resistance,the inoxidizability,resistance of humidity,the fine electric insulation and flexible performance VDE, RoHS complicance.
Application:
Apply to Household appliance,Lighting&Headlamp,electric machines,tempurature sensor,military series,metallurgy Chemical series,Motor cars&Ships Electrical installation.
Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.
Conductor | Insulation | Jacket | Electrical Characteristic | Packing |
| | Diameter mm | Insulation Thickness mm | Over DIM. Mm | Jacket Thickness mm | Over DIM. mm | | Mt/coils |
0.50 | 16×0.20 | 0.92 | 0.60 | 2.12 | 0.60 | 3.32 | 39.5 | 400 |
0.75 | 24×0.20 | 1.13 | 0.60 | 2.33 | 0.60 | 3.53 | 26.0 | 400 |
1.00 | 32×0.20 | 1.31 | 0.60 | 2.51 | 0.60 | 3.71 | 19.5 | 400 |
1.50 | 48×0.20 | 1.61 | 0.70 | 3.00 | 0.85 | 4.7 | 13.3 | 400 |
2.50 | 48×0.25 | 2.06 | 0.70 | 3.46 | 0.90 | 5.25 | 7.98 | 200 |
