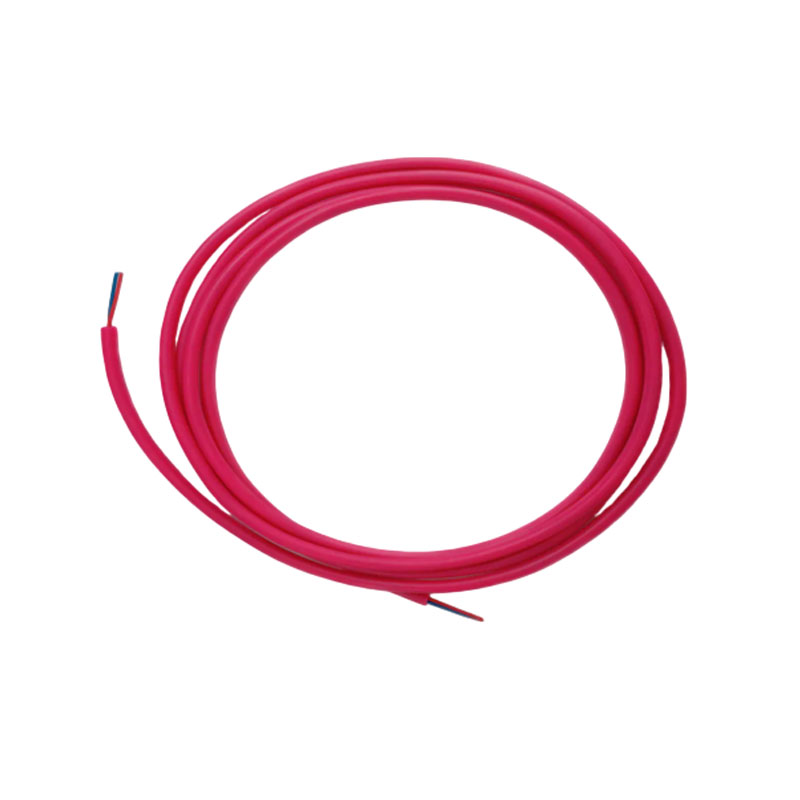

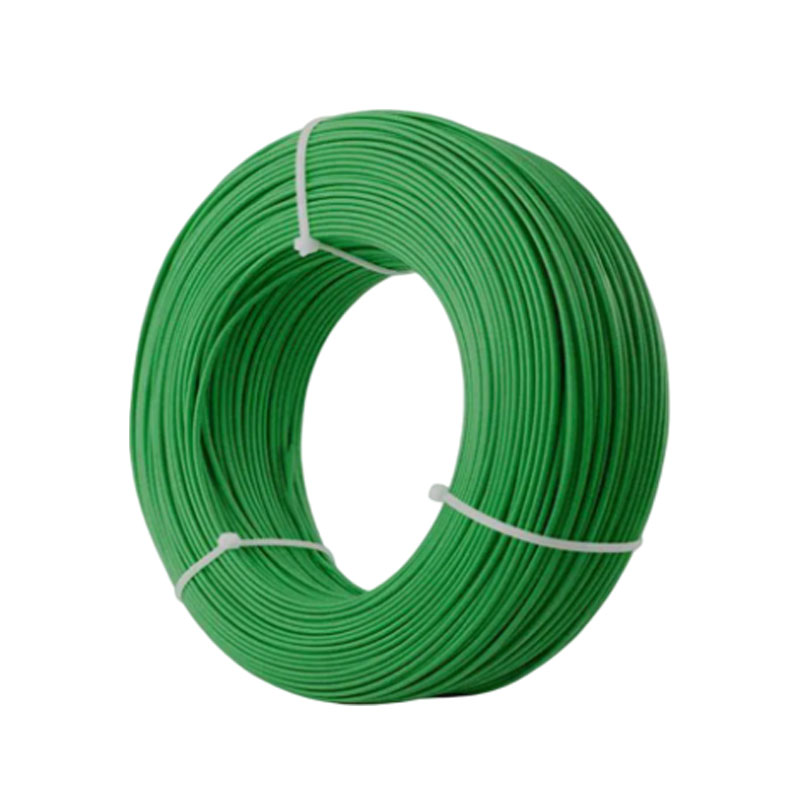

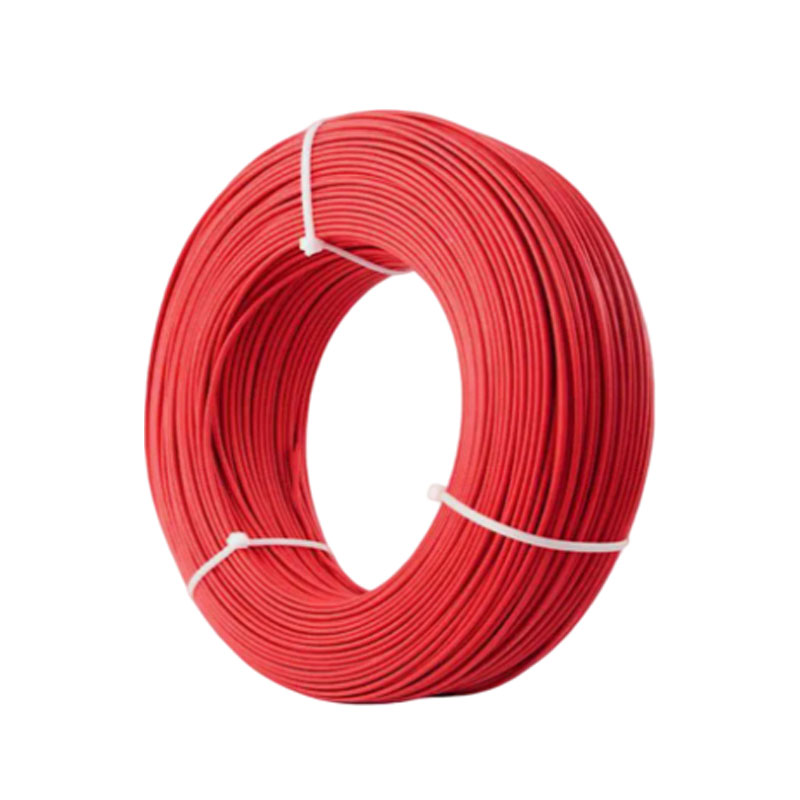

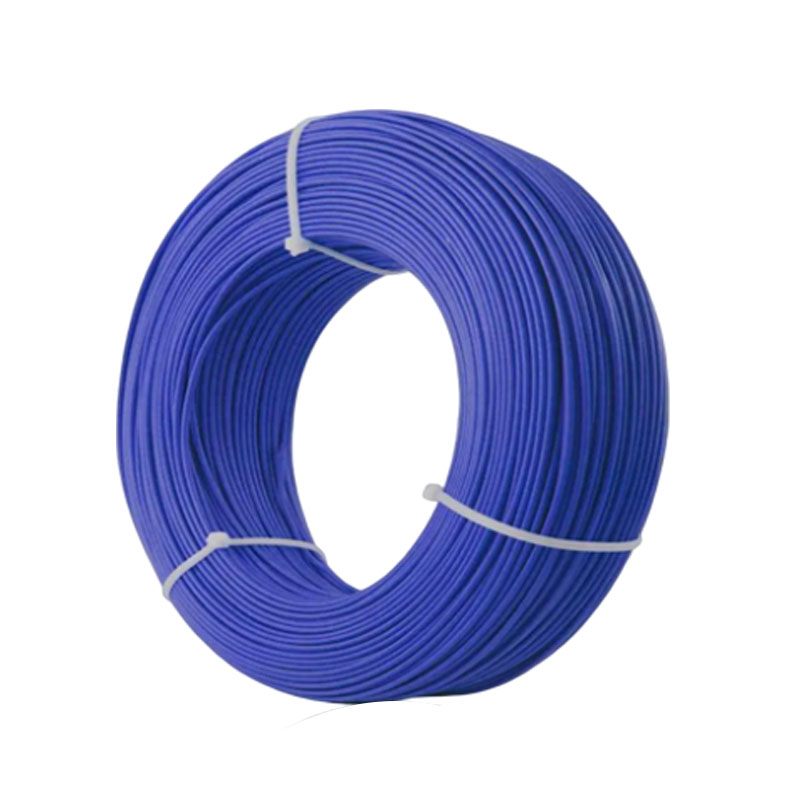

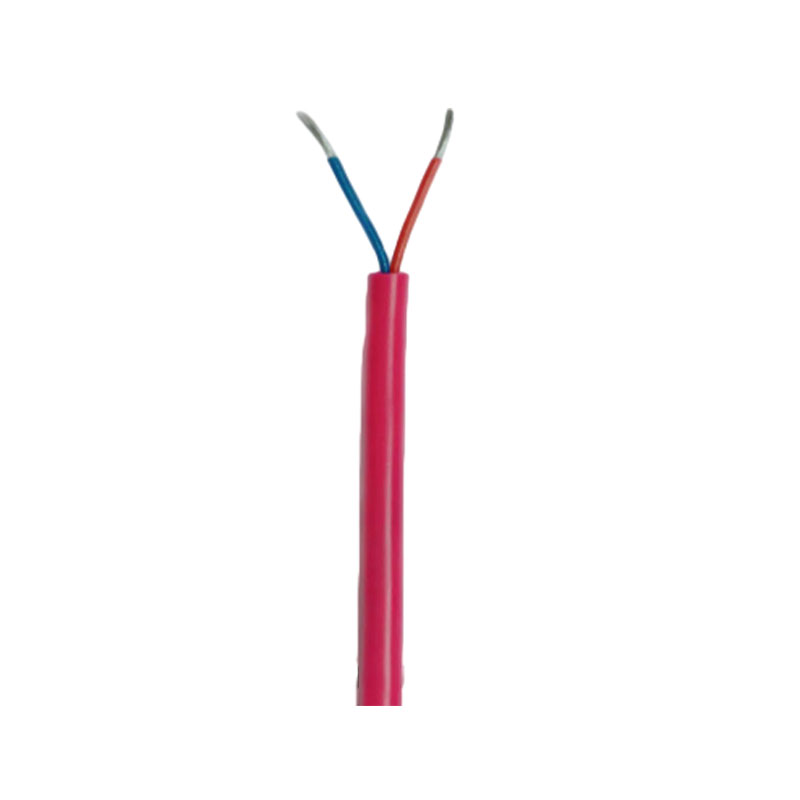

UL 1331 Standard Rohs Compliance 600V Fluoroplastic FEP Wire Cable

UL 1331 Standard Rohs Compliance 600V Fluoroplastic FEP Wire Cable

Household Appliances, Lighting Fixtures
High temperature resistance,low temperature resistance anti-acid,anti-oil,antisepsis and moisture,DIN VDE 0250,ROHS compliance.
Application:
Apply to household appliance,illumination & lighting & Headlamp,electric machines,temperature sensor,Military series,Metallurgy Chemical series,Motor cars & Ships Electrical Installation.

Consult

Features Technical Indicators Overall Dimension

High temperature resistance,low temperature resistance anti-acid,anti-oil,antisepsis and moisture,DIN VDE 0250,ROHS compliance.

Application:
Apply to household appliance,illumination & lighting & Headlamp,electric machines,temperature sensor,Military series,Metallurgy Chemical series,Motor cars & Ships Electrical Installation.

Conductor			Insulation		Electrical Characteristic		Packing
AWG	Conductor construction NO×mm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Realst.max Cuc.c 20ºC ohm/km	Permissiblle ampacity 20ºC-AMR	Mt/coils


26	7×0.16	0.49	0.3	1.09	143.00	3.15	610
24	7×0.20	0.61	0.3	1.21	89.30	5.04	305
22	19×0.15	0.76	0.3	1.36	56.40	7.98
20	19×0.185	0.93	0.3	1.53	35.20	12.78
18	19×0.235	1.16	0.3	1.76	22.20	20.27
